Once reserved for military operations and law enforcement, thermal drones have become invaluable tools across various industries, from search and rescue missions to industrial inspections and even wildlife monitoring.
What is a Thermal Drone?
Thermal imaging drones are drones equipped with thermal cameras that allow users to detect heat signatures that would otherwise be invisible to the naked eye. The thermal camera takes the heat signature readings and creates a heat map image showing the differences in temperature.
These thermal images are invaluable tools for many applications, including a firefighter needing to locate hotspots, a search-and-rescue team trying to find a lost individual, a conservationist tracking deer populations, or an engineer inspecting infrastructure for heat leaks. In these high-pressure scenarios, using the right thermal imaging drone can be a game-changer.
In this article, we’ve compiled the ten best thermal imaging drones on the market in 2024, considering key features. We’ve also created a comparison table and break down each drone’s pros and cons to help you make the best choice for your needs.
How We Chose the Drones on This List
To find the best thermal drones, we evaluated several features, looking for drones that provide high-quality performance and are easy to use. We evaluated camera resolution, image processing, heat sensitivity, object tracking capabilities, GPS capabilities, flight time, flight range, ease of use, and more.
Resolution
The higher the resolution of the thermal camera, the more detailed the images. Resolution is critical when it comes to thermal imaging, so the drone’s camera’s resolution is crucial.
Most high-end thermal drones offer a resolution of 640 x 512 px, which provides sufficient detail for most professional applications, such as pinpointing hotspots during a fire or identifying wildlife at a distance.
Lower resolutions, while still useful, may not capture the finer details, making it harder to detect smaller heat signatures or subtle temperature changes.
Image Processing
Some drones offer better in-flight processing to enhance the quality of thermal images. Advanced image processing allows for clearer, more actionable data from thermal cameras.
For example, drones like the Autel EVO Max 4T come equipped with powerful onboard processors that enhance the quality of the thermal feed in real time.
Features like radiometric thermal imaging help translate the temperature data into clear, easy-to-interpret visuals.
Sensitivity
A drone’s sensitivity determines how well it can detect small temperature variations. A thermal camera with high sensitivity will provide much more accurate and useful results, easily picking up on different heat signatures.
The ability to detect minor temperature differences is essential in applications like search and rescue missions or industrial inspections where slight variations could indicate potential issues.
For instance, the DJI Matrice 300 RTK is known for its high sensitivity, allowing it to detect small changes in heat signature, making it a top choice for first responders and industrial users.
Object Tracking
Many professional thermal drones include object tracking features, allowing them to lock onto and follow moving targets, such as wildlife or people. This feature is essential for time-sensitive and dynamic applications like tracking lost individuals during search and rescue missions.
For example, the DJI Mavic 2 Enterprise Advanced stands out for its ability to track and follow moving objects. It combines thermal imaging with real-time GPS tracking to maintain focus on targets, whether a lost individual or a moving vehicle.
Flight Time
A drone’s flight time is one of its most important attributes, as it dictates how long it can stay in the air and how much ground it can cover. Since thermal drones are often required for long missions, this is a key differentiator.
For example, the DJI Mavic 3 offers a flight time of up to 46 minutes, which is among the best in the industry. This extended battery life ensures that you can conduct thorough searches or inspections without the constant need to swap batteries.
GPS Capability
GPS capability is essential for professional-grade thermal drones. Drones with integrated GPS, such as the DJI Matrice 300 RTK, offer precise positioning, return-to-home functionality, and geofencing options to enhance safety. These features are crucial for accurate navigation, especially in complex environments like dense forests or urban areas.
Range
The flight range of a drone determines how far it can fly from the operator, which is another critical feature of thermal drones. Long-range thermal drones like the Autel EVO Max 4T can cover up to 9 kilometers, making them ideal for large-scale inspections or search and rescue missions that require wide-area surveillance.
Ease of Use
While thermal drones are often used on highly skilled missions, it is still important that they are easy to use. When responding to a time-sensitive or urgent matter, it can be a game changer to have a drone that is easy to deploy and operate under stress.
Many modern thermal drones are designed with intuitive controls, making them accessible to both novices and professionals. For example, the DJI Mavic 2 Enterprise Advanced features a simple setup process and easy-to-use flight controls, ensuring quick deployment in emergency situations.
Our Experience - Why Trust Our Opinion?
Drone Launch Academy is proud to be a team of industry experts and skilled drone pilots. We partner with the industry’s most talented drone professionals and industry experts to create courses and workshops to teach you everything you need to know to you reach your drone goals. Our in-depth knowledge of everything related to drone technology gives us unique insights into which models offer the best performance for different tasks.
Assessing the Thermal Camera Quality
When evaluating which thermal drone is right for you, the quality of the thermal camera is one of the most important decision factors.
High-end drones offer a combination of sensitive thermal resolution, high frame rates, and high optical zoom to provide users with a comprehensive view of the environment. Features like radiometric thermal imaging enable precise temperature measurements, while multi-sensor setups combine visible light and thermal data to create hybrid images that are easier to interpret.
The Best Thermal Drones
Choosing the right thermal drone can be overwhelming, with many options offering different features and capabilities.
To help you make an informed decision, we’ve compiled a list of the best thermal imaging drones on the market, tailored for various needs and budgets. Whether you’re looking for a high-performance commercial thermal drone or a versatile drone for recreational use, these models deliver exceptional performance and reliability.
Let’s dive into the standout features and specifications of each.
1. DJI Matrice 300 RTK
The DJI Matrice 300 RTK is a top-tier model for enterprise drone operations. Designed for extreme conditions, this drone is highly versatile and can carry multiple payloads, including an optical zoom and thermal camera. Its exceptionally long flight time makes it ideal for long-range missions, industrial inspections, and operations.
Key Features: 6-Direction Optical Sensing, Advanced AI Capabilities, Smart Tracking, Aviation-Grade Situational Awareness, operates in extreme temperatures, live mission recording, Waypoints 2.0, Dual-Control Capabilities, Redundant safety features
Flight Time: 55 minutes
Flight Range: 15 km
Weight: 6.3 kg
Video: 1080p
Max Speed: 23 m/s
Maximum payload: 2.7 kg
Operational temperatures: -20°C to 50°C
Pros: Longest flight time on this list, suitable for extreme environments
Cons: Typically ranging between $10,000-$14,000, may be too expensive, bulky, or heavy for most users
2. DJI Zenmuse H20T
The DJI Zenmuse H20T is a powerful thermal camera system designed to work with the DJI Matrice series. It combines thermal imaging, optical zoom, and laser range-finding, making it a versatile tool for detailed inspections or search operations. While the DJI Zenmuse H20T is only a payload and not actually a drone itself, it is a dynamic, all-in-one solution that may appeal to many users for a wide variety of applications.
Key Features: 12 MP wide-angle camera with 82.9° display field of view (DFOV), 20 MP zoom camera with 23x zoom, 640 x 512 px radiometric thermal camera, 1,200 m laser RangeFinder, operates in extreme temperatures, Active Image Stabilization, Night Scene Mode, AI Spot Check, High-Resolution Grid Photos, PinPoint objects, Smart Tracking
Flight Time: N/A
Flight Range: N/A
Weight: 828 g
Video: 4k/30 fps
Max Speed: N/A
Maximum payload: N/A
Operational temperatures: -20°C to 50°C
Pros: The hybrid system is a high-perfomance, all-in-one solution for a optical and thermal camera
Cons: The camera system is a payload only and requires integration with a drone model, such as the DJI Matrice 300 RTK
3. Autel EVO Max 4T
The Autel EVO Max 4T offers excellent thermal imaging performance with a 640 x 512 resolution camera, making it a top competitor in the thermal drone market. It’s equipped with both thermal and optical sensors, providing hybrid views for better data collection and decision-making.
Key Features: Autonomous flight path sensing, GPS navigation, object identification and object tracking, 50 MP wide-angle camera, 48 MP zoom camera, 8K 10x optical zoom, laser rangefinder, no blind spots, anti-jam and anti-interference technology, A-Mesh 1.0 Networking Technology, SkyLink 3.0, encrypted data storage
Flight Time: 42 minutes
Flight Range: 9 km
Weight: 1620g
Video: 1080p/60 fps
Max Speed: 23 m/s
Operational temperatures: -20°C to 50°C
Pros: Combining thermal imaging, optical, wide-angle cameras, and laser sensing, the Autel EVO max 4t is another fantastic all-in-one thermal drone solution
Cons: While the 4-in-one technology makes this drone incredibly dynamic, it cannot fly as long and far compared to other models on this list like the DJI Matrice 300 RTK

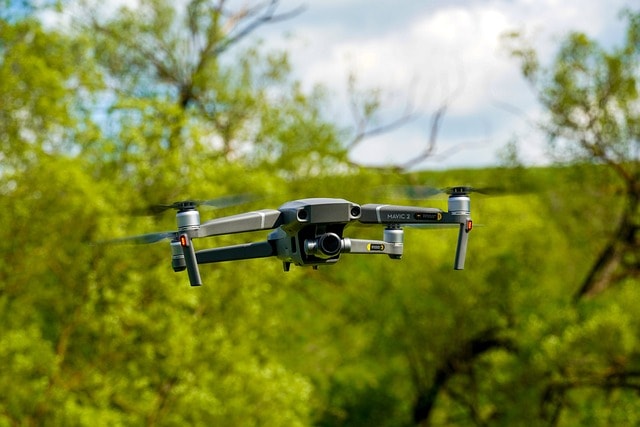

4. DJI Mavic 2 Enterprise Advanced
The DJI Mavic 2 Enterprise Advanced (M2EA) is a compact, foldable drone with advanced thermal imaging capabilities. Its portability, combined with a 640 x 512 resolution thermal camera, makes it a favorite among professionals. If you need a thermal drone but don’t need all the capabilities of other models, the M2EA may be perfect for you.
Key Features: 640 x 512 px radiometric thermal camera, 48 MP visual camera, 32x digital zoom, omnidirectional obstacle sensing and avoidance, centimeter-level accurate positioning, AirSense, Discreet Mode
Flight Time: 24-31 minutes
Weight: 909g
Video: 30 fps
Max Speed: 20 m/s
Operational temperatures: -10°C to 40° C
Pros: The M2EA is more compact, convenient, affordable than other drone models on this list
Cons: Since it is a compact drone, the M2EA has a much shorter flight time and a smaller operational temperature range, so it may not be suitable for long missions or extreme environments
5. DJI Mavic 3 Thermal
The DJI Mavic 3 Thermal ranks among the top thermal drones, with its impressive flight time and thermal imaging capabilities. It is a compact size, but the small size does not mean it is lacking in features! The DJI Mavic 3 Thermal is a commerical-grade thermal drone ideal for applications with long missions, offering a 640 x 512 thermal camera combined with a 15 km range.
Key Features: Compact and portable, 640 x 512 px thermal camera, wide-angle 20 MP camera, 12 MP zoom camera, centimeter-level accurate positioning with RTK, high-volume loudspeaker, low-light mode, simultaneous split-screen zoom, omnidirectional obstacle sensing
Flight Time: 45 minutes
Flight Range: 32 km
Weight: 920g
Video: 1080p/30 fps
Max Speed: 15 m/s
Operational temperatures: -10° to 40° C
Pros: Despite being so compact that you can hold the DJI Mavic 3 Thermal with one hand, it is extremely capable and equipped to handle long, tough missions
Cons: With prices range from $5,000-$6,000, the DJI Mavic 3 Thermal is a bit pricier than other compact thermal drone models
6. Autel EVO II Dual 640T
The EVO II Dual 640T is a powerful thermal drone known for its high-resolution thermal camera and exceptional flight capabilities. It’s ideal for firefighting, search and rescue, and wildlife monitoring, offering unmatched durability and performance. With a dual-camera system for both thermal and visual imaging, it provides real-time thermal feedback and precise temperature measurements.
Key Features: Smart object identification and tracking, 50 MP ultra-sensitive camera, 640 x 512 high-resolution thermal imaging camera, multiple temperature sensing modes, RYYB Sensor Technology, PDAF+CDAF Autofocus System, 4K HDR, SkyLink 2.0 video transmission, 360° Obstacle Avoidance
Flight Time: 38 minutes
Flight Range: 15 km
Weight: 1150 g
Video: 4K
Max Speed: 20 m/s
Operational temperatures: -20° to 40° C
Pros: Its rugged design makes it ideal for challenging missions and extreme environments, and it is a favorite among hunters
Cons: The rugged design of the EVO II Dual 640T means it is a bit heavier than other thermal drones on this list, weighing in at 1150 g
7. Parrot Anafi USA Thermal
The Parrot Anafi USA Thermal stands out as one of the most lightweight and compact drones on this list. Weighing in at only 315 g, it is in a league of its own for compact thermal drones. Despite its size, the Parrot Anafi USA Thermal is known for its high-quality thermal imaging cameras. Its three-camera array delivers 32x zoom, 4K HDR video, and thermal vision in one sleek package.
Key Features: 21 MP camera
Flight Time: 26 minutes
Weight: 315 g
Video: 4K HDR
Max Speed: 15 m/s
Operational temperatures: -10° to 40° C
Pros: The compact, lightweight specs makes it easy to transport and use
Cons: Since the drone is so compact, it has a much shorter flight time than other options, making it less than ideal for long missions
8. Yuneec H520E-RTK
The Yuneec H520E-RTK is a versatile thermal drone designed for surveying, mapping, and industrial inspections. Its advanced RTK (Real-Time Kinematic) technology allows for incredibly precise GPS positioning, which is crucial for missions that require centimeter-level accuracy.
Key Features: RTK technology, centimeter-level accurate GPS positioning, 360-degree gimbal rotation, hot swappable payload options, retractable landing gear, six-rotor system, Orbit Flight Mode, Team Mode
Flight Time: 28 minutes
Flight Range:
Weight: 1645 g
Max Speed: 13.5 m/s
Operational temperatures: 0°C – 40°C
Pros: If you need a thermal drone for industrial inspections, the Yuneec H520E-RTK is perfectly designed for your needs, and it is extremely stable, reliable, and precise
Cons: The Yuneec H520E-RTK is heavier and slower than other models on this list, has a shorter flight time, and does not perform as well in extreme cold temperatures, so it is not ideal for long, dynamic missions
9. FLIR Vue TZ20
The FLIR Vue TZ20 is a thermal imaging payload designed to be attached to various drones, making it a highly customizable option for professionals needing advanced thermal detection. This thermal camera has been discontinued, but it is still a great option if you can find it secondhand. Known for its dual thermal lenses, FLIR provides incredible clarity for search and rescue and emergency response applications.
Key Features: Dual thermal lenses for long-range and close-up imaging, Gimbal stabilized, 20x thermal zoom, 60Hz FLIR Boson sensors, compatible with multiple drone platforms (including the Matrice 300), advanced image processing
Flight Time: N/A
Flight Range: N/A
Max Speed: N/A
Pros: This thermal camera payload provides superior thermal image quality, highly customizable, and is compatible with a variety of drones, providing you flexibility
Cons: The camera system is a payload only and requires integration with a drone model, such as the DJI Matrice 300 RTK

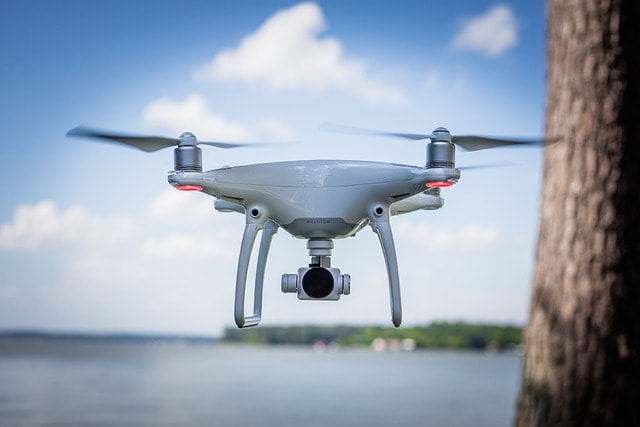

10. DJI Phantom 4 RTK
The DJI Phantom 4 RTK combines thermal images with RTK positioning, providing incredible accuracy for mapping, surveillance, and industrial inspections. Known for its dual-frequency GNSS module, it ensures centimeter-level positioning accuracy and is a favorite for professionals who need precision mapping and high-quality thermal imagery.
Key Features: RTK precision mapping, dual thermal and visual imaging, TimeSync, OcuSync, centimeter-level positioning, 1-inch, 20-megapixel CMOS sensor, flight planning, third-party app integration
Flight Time: 30 minutes
Flight Range: 7 km
Weight: 1391 g
Video: 4K
Max Speed: 16 m/s
Operational temperatures: 0° to 40℃
Pros: The DJI Phantom 4 RTK provides incredibly accurate thermal mapping capabilities and is extremely reliable
Cons: The DJI Phantom 4 RTK is heavier and has a shorter flight range than other models on this list
How Thermal Drones Work

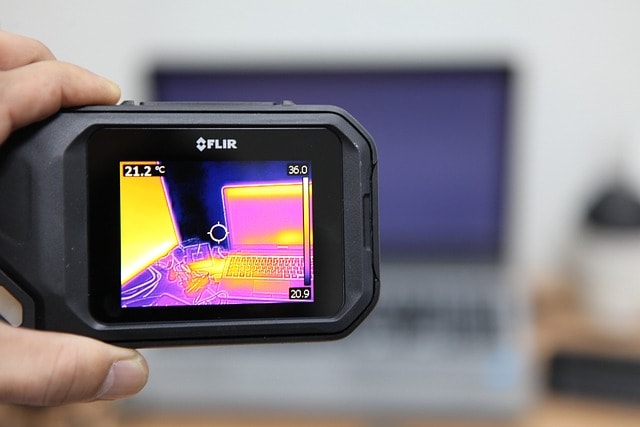

Thermal cameras detect infrared radiation, which is invisible to the naked eye but emitted by any object or animal that generates heat. These cameras translate that heat into visible images by using a color gradient to represent different temperatures. Warmer areas appear as brighter colors (such as yellow or red), while cooler areas appear in darker shades (blue or purple).
This technology allows drones to identify temperature differences, making them useful in a variety of scenarios, from detecting overheating equipment to locating people in low-visibility environments.
Uses For Thermal Drones
Thermal drones are useful in a wide range of industries. They provide unique image capabilities that allow users to detect heat signatures and temperature variations, making thermal imaging a dynamic tool. Whether it’s locating lost individuals, inspecting critical infrastructure, or monitoring wildlife, drones equipped with thermal cameras offer unparalleled insights for both professionals and hobbyists alike.
Let’s explore some of the most common and impactful uses for thermal drones like the DJI Matrice or Mavic 3 Thermal.
Search and Rescue
Thermal drones can quickly scan large areas for temperature variations, making them invaluable in rescue missions where time is of the essence. They can detect people or animals even in dense forests, at night, or in smoke-filled environments.

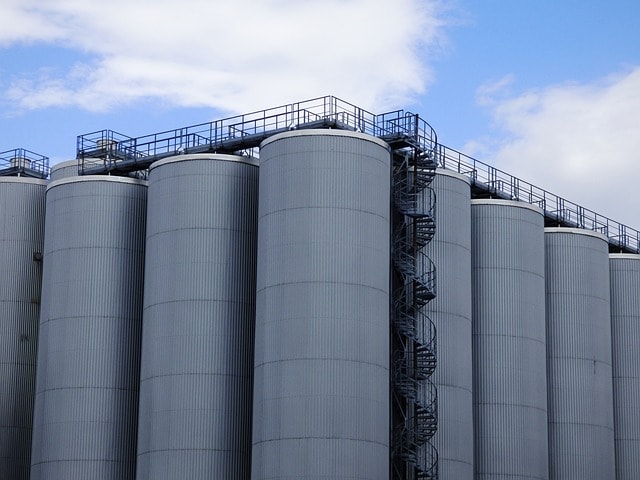

Industrial Inspections
Drones equipped with thermal cameras can perform industrial inspection tasks such as power line inspections, pipeline monitoring, and solar panel assessments. They are useful tools for identifying heat anomalies that indicate equipment failure or inefficiencies. This method is safer, quicker, and more cost-effective than traditional inspections that require people on-site instead.
Wildlife Monitoring
Thermal drones are used in wildlife conservation to track animals by their heat signatures without disturbing them. This is especially useful in nighttime monitoring or in environments where visibility is limited, like dense forests. The combination of thermal imaging and object tracking helps conservationists observe animals in a way that people never could while on the ground.
Firefighting
Firefighters use thermal drones to identify hotspots and locate trapped victims in large-scale fires. By providing real-time thermal feedback, the thermal imaging technology enhances situational awareness, enabling safer and more effective firefighting strategies without putting the firefighters at unnecessary risk.
Law Enforcement
Similarly in law enforcement, thermal imaging can be instrumental in surveillance, suspect tracking, and monitoring large crowds. Since thermal drones can detect heat signatures in dark or hidden areas, they help give officers a tactical advantage without putting personnel in harm’s way.
Thermal drone models with extra features, such as the high-volume loudspeaker on the DJI Mavic 3 Thermal, make it easy to communicate while responding to a scene.
Recreational
Thermal drones are often used in high-stakes, mission-critical scenarios. However, they can also be great tools for recreational users or hobbyists.
For hobbyists, thermal drones provide a unique way to capture nature photography or videography from a thermal perspective. This adds a creative layer to traditional drone footage, offering a fresh take on aerial imagery.
They can also be used to enhance recreational activities, such as tracking game while hunting in the forest or drone racing in complex environments.
There are many great thermal drones for recreational purposes, like the compact DJI Mavic 3 Thermal or the Mavic 2 Enterprise Advanced.
Maintenance and Care
Regular maintenance is essential to keeping your thermal drone in optimal condition. Ensure you clean the thermal camera lens after every use to avoid smudging or debris buildup, which could impact image quality.
Proper battery care—such as charging after each use and avoiding extreme temperatures—will extend your drone’s flight life.
Lastly, be sure to update your drone’s firmware regularly to ensure you’re using the latest features and security enhancements.
Conclusion: The Best Thermal Drones
Thermal drones are invaluable tools for professionals across various industries. They provide critical insights for search and rescue, inspections, wildlife monitoring, and more.
Selecting the right drone comes down to balancing your specific needs with the drone’s features. Whether you require precise thermal imaging like the Autel EVO Max 4T for industrial applications or seek a drone that is compact and easy to use for recreational use like the DJI Mavic 3 Thermal, there is a great thermal drone option for you.
No matter which drone you choose, all of the models listed above offer exceptional thermal imaging features and are designed to make your job easier and more efficient.
